Benzene in Canadian Gasoline:
Effect of the Benzene in Gasoline Regulations

2007 Annual Report

Published: December 2009

Acknowledgements

Prepared by:
Raseeka Rahumathulla
In collaboration with:
Lorri Thompson and Robert Fuller (University of Waterloo co-op student, 2009)
Oil, Gas and Alternative Energy Division
Energy and Transportation Directorate
Environment Canada

Notice

The information contained in this report is compiled from data as of July 16, 2009 submitted by the producers and importers of gasoline in Canada pursuant to the requirements of the Benzene in Gasoline Regulations under the Canadian Environmental Protection Act, 1999. Information submitted to Environment Canada has been reviewed for reasonableness but are subject to potential errors made at the source.

Table of Contents

Appendices

Appendix 1:
Annual Compliance Package with Sample Reporting forms for the Benzene in Gasoline Regulations; & Gasoline Regulations
Appendix 2:
Alternative Limits under the Benzene in Gasoline Regulations
Appendix 3:
Regional and National Data for all Parameters
Appendix 4:
Company Reported Data

Tables

Table 2.1:
Regulated Limits for Benzene and the BEN
Table 3.1:
Primary Suppliers Reporting on Gasoline Composition (2007)
Table 4.1:
Regional Volumetric Data (2007)
Table 4.2:
Benzene Concentration and BEN (2007)
Table 4.3:
Average and Maximum Concentration of MTBE Reported
Table 4.4:
Average and Maximum Concentration of Ethanol Reported
Table 4.5:
Average Aromatics Content of Canadian Gasoline 1995-current
Table 4.6:
Average Olefins Content of Canadian Gasoline 1997-current
Table 4.7:
Comparison of Importers and Refiners Reported Maximum and Average Values
Table 5.1:
Number of Companies Reporting Gasoline Imports for Use in Competition Vehicles (2007)
Table A3.1:
Averages & Maximum Values of Reported Gasoline Parameters (2007)
Table A4.1a:
Averages and Maximas Reported for Gasoline Parameters (2007)
Table A4.1b:
Averages and Maximas Reported for Gasoline Parameters (2007)

Figures

Figure 1.1:
Average Benzene and Aromatics Content of Canadian Gasoline(1994-current)
Figure 1.2:
Average Ambient Benzene Concentration in Canada(1990-current)
Figure 3.1:
Reported Benzene Levels for Suppliers on a Flat Limit, 2007
Figure 3.2:
Reported BEN for Suppliers on a Flat Limit, 2007
Figure 3.3:
Reported Benzene Levels for Suppliers on a YPA Limit, 2006
Figure 3.4:
Reported BEN Average for Suppliers on a YPA Limit, 2006
Figure 4.1:
Average Benzene Content of Canadian Gasoline by Region,(1995-current)
Figure 4.2:
Average Benzene Concentration of Canadian Gasoline (2007)
Figure 4.3:
Average BEN of Canadian Gasoline (2007)
Figure A3.1:
Average, Maximum Average and Value for Benzene Concentration

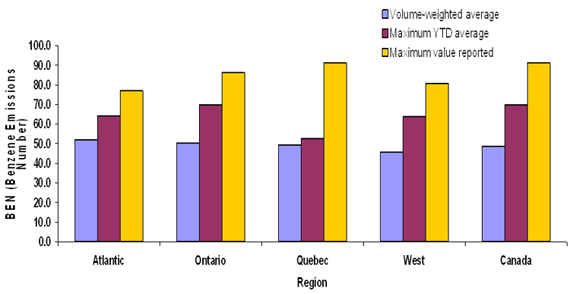

Figure A3.2:
Average, Maximum Average and Value for BEN
Figure A3.3:
Average, Maximum Average and Value for Sulphur Concentration
Figure A3.4:
Average, Maximum Average and Value for Olefin Concentration

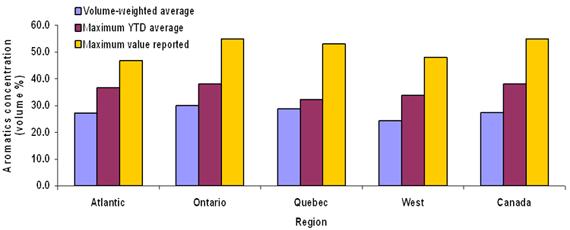

Figure A3.5:
Average, Maximum Average and Value for Aromatics Concentration

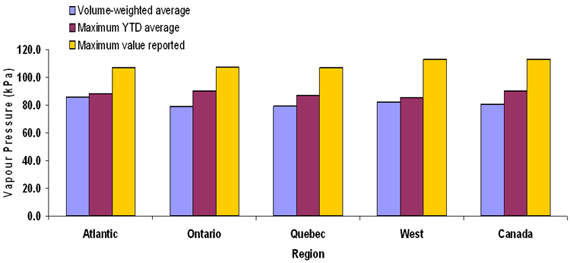

Figure A3.6:
Average, Maximum Average and Value for Vapour Pressure
Figure A3.7:
Average, Maximum Average and Value for E200

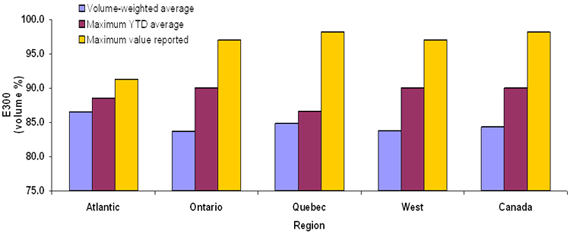

Figure A3.8:
Average, Maximum Average and Value for E300
Figure A3.9:
Average, Maximum Average and Value for Oxygen Concentration

Top of Page

1.0 Summary

This report reviews how primary suppliers have responded to the Benzene in Gasoline Regulations of the Canadian Environmental Protection Act, 1999 (CEPA 1999). The Benzene in Gasoline Regulations came into effect on July 1, 1999, fulfilling a recommendation of the federal-provincial Task Force on Cleaner Vehicles and Fuels. In 1995, the Task Force recommended to the Canadian Council of Ministers of the Environment (CCME) that benzene in gasoline be reduced through a federal regulation to 1% by volume and that aromatics (or equivalent benzene tailpipe emissions) be frozen at 1994 levels. The CCME endorsed this recommendation. Consequently, the federal government passed the federal Benzene in Gasoline Regulations on November 26, 1997.

The Benzene in Gasoline Regulations have been successful in achieving both of the recommendations of the Task Force: reported benzene levels have been significantly reduced and reported aromatic levels are about the same as they were in 1994. Figure 1.1 shows how benzene and aromatics levels have changed since the coming into force of the regulations.

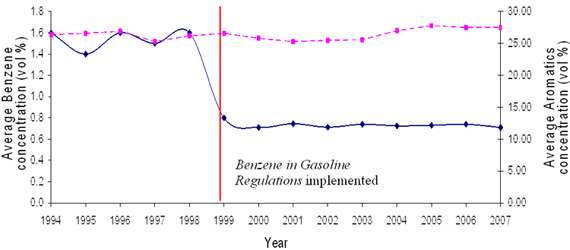

Figure 1.1: Average Benzene and Aromatics Content of Canadian Gasoline (1994-current)

Figure 1.1: Average Benzene and Aromatics Content of Canadian Gasoline (1994-current)

Click here to see the picture in full-size

All primary suppliers must submit reports annually to Environment Canada reporting on the composition of the gasoline they supplied in that year (quarterly reports were required until the end of 2002). For the 2007 reporting year all primary suppliers reported that all gasoline supplied in Canada met the regulated requirements with respect to benzene concentration and benzene emissions number (BEN) with one exception respectively. Details on the exceptions can be found in Section 3.3: Reported Exceedances of Regulated Limits.

Independent audits are required for those primary suppliers that elected to be on a yearly pool average and must be submitted to Environment Canada by May 31 of the year following the reporting period. This report includes analysis of the independent audits conducted for the 2007 reporting period. Those audits found six instances of non-compliance with administrative requirements involving sampling and reporting requirements. One primary supplier outlined corrective actions taken to address these issues.

Figure 1.2 shows that average urban ambient benzene concentrations, measured at Environment Canada monitoring stations across Canada, have fallen by 73% between 1991 and 2007. Since 1998, the year prior to the regulation coming into effect, average urban and rural ambient benzene concentrations have fallen by approximately 56%.

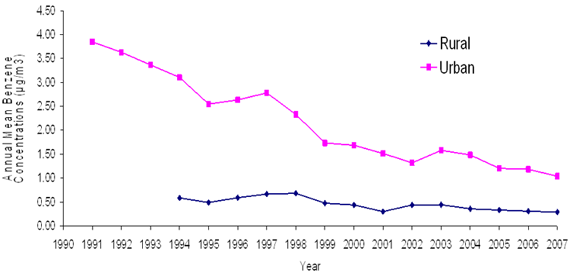

Figure 1.2: Average Ambient Benzene Concentration in Canada (1990-current)
Figure 1.2: Average Ambient Benzene Concentrations in Canada (1990-current)

Source of Data: Tom Dann (Environment Canada), personal communication, 2007

Click here to see the picture in full-size

Top of Page

2.0 Overview of Benzene in Gasoline Regulations

This report reviews the compliance of primary suppliers’ (refiners, importers and blenders) gasoline with the Benzene in Gasoline Regulations[1], and summarizes levels of various parameters in Canadian gasoline. The information used for this report was provided by primary suppliers, as required under the Regulations.

2.1 Benzene in Gasoline Regulations

The Benzene in Gasoline Regulations were passed in November 1997 in order to reduce emissions of benzene from gasoline-powered vehicles. The regulations limit the level of benzene and the benzene emission number (BEN)[2] of Canadian gasoline and require reporting on the composition of gasoline that is produced, imported or blended[3]. The Regulations apply to all types of gasoline for sale or use in Canada, except gasoline for use in aircraft, competition vehicles or scientific research.

All primary suppliers of gasoline must submit reports annually on the levels of various parameters of their gasoline to Environment Canada (quarterly reports were required until the end of 2002). Importers must notify Environment Canada at least 12 hours in advance of their intention to import:

The Benzene in Gasoline Regulations introduced a new approach to controlling fuel composition by allowing regulatees the option to elect to use a yearly pool average as the basis for compliance. This option is selected separately for each refining, blending facility and import pool and provides regulatees considerable flexibility in meeting the requirements of the regulations. The Regulations are chiefly focused on primary suppliers (refiners, blenders and importers) who can affect the composition of gasoline. There is also a per-litre limit for benzene at the point of sale. In addition to setting a limit for gasoline benzene content, the Regulations also set a limit for the benzene emission number (BEN) of gasoline, a number that relates gasoline composition to estimated emissions of benzene from vehicles.

The regulated limits apply to individual refineries, blending facilities, and imports into a province from outside Canada. Primary suppliers are subject to flat limits for each of their refineries, blending facilities or import pools unless they have elected for yearly pool average limits. The yearly pool average is the volume-weighted average of benzene or BEN of the gasoline supplied by the primary supplier during a year and may be selected for either benzene, BEN, or both. Independent audits must be submitted to Environment Canada by primary suppliers who elect to be on a yearly pool average.

Since July 1, 1999, primary suppliers have been subject to limits on the level of benzene and the BEN in the gasoline they produce, blend or import. Table 2.1 summarizes the regulated limits for benzene and the BEN.

Table 2.1: Regulated Limits for Benzene and the BEN
Supplier Activity Type of Limit Benzene % by volume BEN (*)
Summer Winter
*Four refineries use alternative (higher) limits for BEN (pursuant to 17(2) of the Regulations) (refer to Appendix 2 for further information)
Production, Blending and Imports Flat 1.0 71 92
Yearly-Pool Average 0.95 59.5 (annual average)
Not-to-be-exceeded cap 1.5 102 132
Sales Flat 1.5 N/A N/A


Top of Page

2.2 Alternative Limits for the BEN

Under subsection 17(2) of the Regulations, a primary supplier may have elected before December 1, 1998 to use alternative (higher) limits for the BEN. Petro-Canada and Shell elected to use alternative (higher) limits for the BEN at their Ontario and Quebec refineries. Their alternative limits were set out in a Notice published by the Minister of the Environment in the Canada Gazette on September 4, 1999 (see Appendix 2).

These alternative limits were based on the historical composition of the primary supplier’s gasoline, thereby reflecting its historical BEN number. There is no expiry date for alternative BEN limits, although a primary supplier may rescind the alternative limit at any time. A supplier rescinding its alternative limit would then be subject to the normal limits for BEN. These can be found in Appendix 2 (CGI, Vol.133, No.36).

Top of Page

3.0 Compliance with the Regulations

3.1 Primary Suppliers and the Options to Meet Requirements

Primary suppliers are required to register with Environment Canada using the Registration Form for a Manufacturer, Blender or Importer of Gasoline (see Appendix 1). Table 3.1 shows the primary suppliers who were registered with Environment Canada[4] and reported supplying gasoline during 2007 indicating their choice for either a “Flat” (flat per-litre limit) or “YPA” (yearly pool average) as the basis of compliance with the benzene and BEN limits.

Table 3.1: Primary Suppliers Reporting on Gasoline Composition (2007)
  Name Facility or Import Location Benzene Limit BEN Limit
Refiners Chevron Canada Ltd. Burnaby, BC YPA YPA
Consumer's Cooperative Regina, SK YPA Flat
Husky Oil Operations Ltd. Prince George,BC YPA YPA
Imperial Oil Ltd. Dartmouth,NS YPA Flat
Imperial Oil Ltd. Sarnia, ON YPA YPA
Imperial Oil Ltd. Strathcona,AB YPA YPA
Imperial Oil-Ltd. Nanticoke,ON YPA YPA
Irving Oil Ltd. St.John,NB YPA YPA
North Atlantic Refining Ltd. Come-By-Chance,NF Flat Flat
Petro Canada Products Montreal, QC YPA YPA
Petro Canada Products Edmonton,AB YPA YPA
Shell Canada Products Montreal, QC YPA YPA
Shell Canada Products Scotford, AB YPA YPA
Shell Canada Products Sarnia, ON YPA YPA
Suncor Energy Products Inc. Sarnia, ON YPA YPA
Ultramar Ltee. St-Romuald, QC YPA YPA
Blenders Ultramar Ltee. Montreal, QC YPA Flat
Importers General Motors of Canada Ltd. Oshawa, ON Flat Flat
Honda Queenston,ON Flat Flat
Imperial Oil Ltd. Burrard, BC Flat Flat
Morgan Stanley Capital Group Montreal, QC Flat Flat
Olco Petroleum Group Inc. Montreal, QC Flat Flat
Petro Canada Products Burrard, BC YPA YPA
Petroles Norcan Inc Notre-Dame Est , QC Flat Flat
Shell Trading Canada Quebec Flat Flat

As indicated in Table 3.1, refineries tend to prefer yearly pool average limits for the benzene concentration and BEN respectively, whereas blenders and importers often opt for flat per-litre limits.

Top of Page

3.2 Information Reported

Under section 8 of the regulations, primary suppliers must provide the information set out on the form entitled Report on the Composition of Gasoline (see Appendix 1) before February 15th of the following year. Prior to 2003, the reports were submitted quarterly. After 2003, it was mandatory that reports are to be submitted before February 15 of the following year.

In addition to the volume of gasoline supplied (m3), the number of batches supplied and the names of any oxygenates added, the regulations require that primary suppliers also report the maximum and year-to-date average values[5] for the following parameters:

Top of Page

3.3 Reported Exceedances of Regulated Limits

For primary suppliers using flat limits (R= refiner, I= importer, B=Blender), Figure 3.1 shows the reported maximum and average benzene level and Figure 3.2 shows the reported maximum and average BEN.

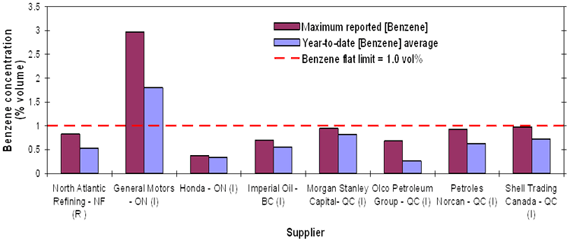

Figure 3.1: Reported Benzene Levels (Maximum and Average) for Suppliers on a Flat Limit, 2007
Figure 3.1: Reported Benzen Levels (Maximum and Average) for Suppliers on a Flat Limit, 2007

Click here to see the picture in full-size

As shown in Figure 3.1 there was one exceedance of the benzene flat limit of 1.0% by an importer who elected for flat limits (General Motors in Ontario). The benzene limit was exceeded by a single shipment of gasoline to a facility which was reported at the time of occurrence directly to Environment Canada. During a provincial shortage of gasoline, General Motors switched suppliers and was sent a single batch of gasoline that did not meet the specifications by General Motors nor the requirements of the Benzene in Gasoline Regulations. All other imported fuel by General Motors was compliant[6].

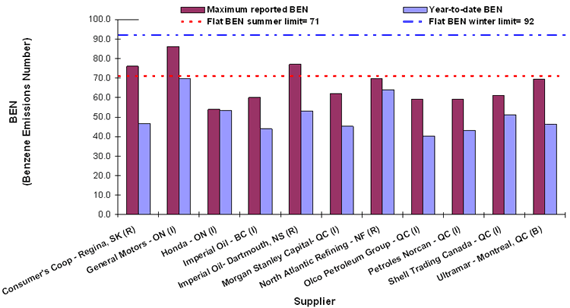

Figure 3.2: Reported BEN (Maximum and Average) for Suppliers on a Flat Limit, 2007
Figure 3.2: Reported BEN (Maximum and Average) for Suppliers on a Flat Limit, 2007

Click here to see the picture in full-size

As shown in Figure 3.2 there were no exceedances of the seasonal BEN limits by a flat-limit supplier in the year 2007.

For primary suppliers using YPA limits, Figure 3.3 shows the reported average and maximum benzene levels and Figure 3.4 shows the reported average BEN as a percentage of the regulated limit (59.5 YPA). The yearly pool average data from Figures 3.3 and 3.4 represent the volume weighted average for all gasoline from a given primary supplier during the year.

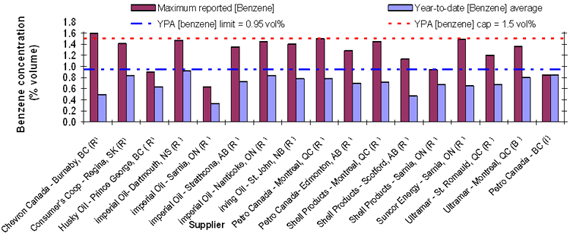

Figure 3.3: Reported Benzene Levels (Maximum and Average) for Suppliers on a Yearly Pool Average Limit, 2007
Figure 3.3: Reported Benzene Levels (Maximum and Average) for suppliers on a Yearly Pool Average Limit, 2007

Click here to see the picture in full-size

One annual report received by Environment Canada contained reported maximum benzene levels that exceeded the Benzene limit of 1.5% (never-to-be-exceeded-cap) as shown in Figure 3.3. An explanation of this reported exceedance was documented in the independent audit report submitted by the primary supplier. This audit report documented one instance where a batch of gasoline used in the yearly pool average calculation had a benzene concentration above 1.5% (by volume). The following extract is the auditor’s description of this instance:

Chevron Canada Burnaby – “There was a deviation noted for an exceedance of Benzene (batch# 07 – 001), the regulations required benzene content with a never to be exceeded cap of 1.5%, batch# 07-001 was confirmed as 1.6%. CCL has investigated and implemented corrective action as documented in the incident report (Ref# 1327).”

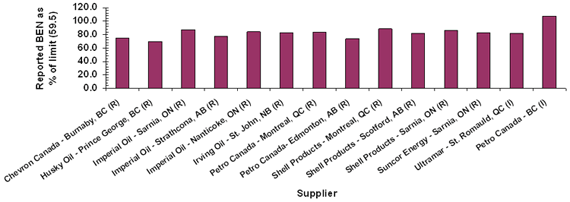

Figure 3.4: Reported BEN Average (% of Limit) for Suppliers on a Yearly Pool Average Limit, 2007
Figure 3.4: Reported BEN Average (% of Limit) for Suppliers on a Yearly Pool Average Limit, 2007

Click here to see the picture in full-size

One annual report received by Environment Canada contained a reported yearly pool average BEN which exceeded the cap (59.5) as shown in Figure 3.4. An explanation of this reported exceedance was documented in the independent audit report submitted by the primary supplier. This audit report documented that there was only one batch processed at the facility, which had a BEN within the maximum BEN cap but exceeding the average BEN cap. The following is the auditor’s description of the instance:

Petro Canada Burrard – “There was a deviation for an exceedance of yearly pool average of BEN at Burrard Products Terminal, Burnaby BC. The Regulations required BEN with YPA not to exceed 59.5; however, there was only one batch received in 2007 (BEN was 64, Ref. Cargo ITB Groton). Hence the YPA of BEN was 64 which exceeded maximum of 59.5.”

Top of Page

3.4 Summary of 2007 Independent Audits

Under section 22 of the regulations, a primary supplier that has elected to use a yearly pool average as its basis for compliance must have an independent auditor perform an audit of the primary supplier’s systems, practices and procedures and its compliance with the regulations.

The auditor’s report must be submitted to Environment Canada by May 31 of the year following the reporting period. Environment Canada views the audits as a crucial component of the enforcement provisions of the regulations and, to be effective, the auditing process must be independent and thorough. The concept of a yearly pool average relies on the maintenance of complete records and reports. The audits are intended to provide Environment Canada assurance that the yearly pool averages are being correctly reported. This section contains the analysis of the Independent Audits submitted for the 2007 reporting period.

For the 2007 reporting year, ten audits were submitted by six companies in regard to eleven refineries, four import pools and one blending facility. Nine of these audits were combined audits capturing the audit requirements for both the Benzene in Gasoline Regulations and the Sulphur in Gasoline Regulations. The audits were conducted by two audit companies.

Paragraph 22(3)(e) of the Regulations requires that the audit contain: “an assessment by the auditor of the extent to which the primary supplier has complied with these Regulations throughout the year of the audit.” The 2007 audits indicate that all primary suppliers subject to audits met the regulated limits for benzene concentration and BEN with the exception of two specific batches prepared by different companies.

Three audit reports identified one or more instances of minor non-compliance with the administrative requirements of the regulations, for a total of six instances of non-compliance. Two companies accompanied the audit report with a list of corrective actions that have been taken by the primary supplier, covering three of the six instances of non-compliance.

Two audit reports identified instances of non-compliance with the regulated limits for Benzene concentration and BEN. One company reported taking corrective action covering one of the two instances of non-compliance.

Instances of minor non-compliance involved sampling and reporting requirements. With respect to sampling, instances of non-compliance included:

With respect to the annual reports required by the regulations, instances of non-compliance included:

Several recommendations for improvements were made by auditors in one of the evaluation reports. These recommendations were made relating to:

Environment Canada views the audits as a crucial component of the enforcement provisions of the regulations and, to be effective, the auditing process must be independent and thorough. The concept of a yearly pool average relies on the maintenance of complete records and reports. The audits are intended to provide Environment Canada assurance that the yearly pool averages are being correctly reported.

Top of Page

4.0 Canadian Gasoline Composition

This section reviews the composition of gasoline in Canada during 2007, based on data reported by primary suppliers pursuant to the regulations. The regulations require that the following parameters are reported:

Appendix 3 shows the regional and national concentrations for all parameters. Appendix 4 shows the parameters reported by individual companies.

Top of Page

4.1 Volume of Gasoline

The number of batches and volume of gasoline (excluding exports) reported are summarized in Table 4.1.

Table 4.1: Regional Volumetric Data (2007)
Region Total Volume (m3) Number of Batches
Atlantic 3,080,831 406
Quebec 14,508,664 1,121
Ontario 10,329,845 1,175
West/North 13,699,785 2,439
National 41,619,125 5,141


Top of Page

4.2 Regulated Parameters: Benzene and BEN

Data reported on benzene and BEN levels for 2007 are summarized in Table 4.2. The national trend for benzene is shown graphically in Figure 4.1.

Table 4.2: Benzene Concentration and BEN (2007)
Year Reported Volume Weighted Averages
Benzene (% Volume) BEN
Minimum Maximum Canadian Volume Weighted Average Minimum Maximum Canadian Volume Weighted Average*
* Includes primary suppliers on alternative limits
2007 0.27 1.6 0.71 0.38 69.70 47.84

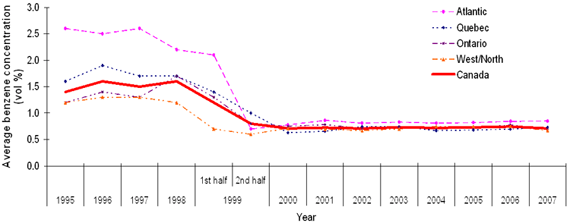

Figure 4.1: Average Benzene Content of Canadian Gasoline by Region (1995-current)
Figure 4.1: Average Benzene Content of Canadian Gasoline by Region (1995-current)

Click here to see the picture in full-size

Figure 4.1 shows the graphical trend in benzene levels between 1995 and 2007 for Canada, both nationally and by region[7]. As the Regulations took effect mid-1999, the data for the year 1999 is presented separately for the first and second half of the year. Nationally, benzene levels in 2007 were half of those between 1995 and 1998.

Figures 4.2 and 4.3 show the regional and national average values for benzene concentrations and BEN, respectively.

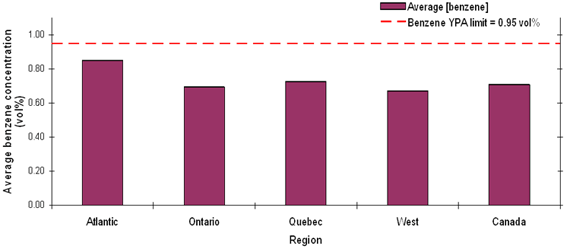

Figure 4.2: Average Benzene Concentration of Canadian Gasoline (2007)
Figure 4.2: Average Benzene Concentration of Canadian Gasoline (2007)

Click here to see the picture in full-size

Figure 4.3: Average BEN of Canadian Gasoline (2007)
Figure 4.3: Average BEN of Canadian Gasoline (2007)

Click here to see the picture in full-size

Top of Page

4.3 Reported Oxygen Concentration

Primary suppliers are required to report the type of oxygenate that they use and the oxygen concentration of the gasoline produced or imported. Tables 4.3 and 4.4 summarize the concentrations of MTBE and ethanol, respectively, based on the reported oxygen concentrations and type of oxygenate. Since 2000, the average level of MTBE reported in gasoline produced and imported has decreased to negligible amounts. The average concentration of ethanol in gasoline that was reported for 2007 showed an 18% decrease from 2006 levels. The data presented here does not include oxygenates that are blended downstream of the refinery or point of import. As a result, these values are likely to be underestimates of the usage of oxygenates in Canadian gasoline.

Table 4.3: Average and Maximum Concentrations of MTBE Reported
* 15 % MTBE by volume = approximately 2.7 wt % oxygen.
Region Average Concentration of MTBE based on all volumes of gasoline reported (% vol)*
2000 2001 2002 2003 2004 2005 2006 2007
Atlantic 0.85 1.13 0.14 0.08 0.06 0.11 0.02 0.00
Quebec 0.02 0.08 0.04 0.06 0.22 0.07 0.17 0.10
Ontario 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
West 0.21 0.01 0.01 0.01 0.00 0.00 0.00 0.00
Canada 0.14 0.11 0.02 0.02 0.06 0.03 0.06 0.00
Region Maximum Concentration of MTBE based on all volumes of gasoline containing MTBE (% vol)
2000 2001 2002 2003 2004 2005 2006 2007
Atlantic 14.89 15.39 14.83 14.67 14.72 14.39 0.61 0.00
Quebec 3.00 7.11 2.22 9.44 9.27 7.90 13.94 13.56
Ontario 11.44 12.22 0.28 11.06 2.78 6.11 0.00 0.00
West 15.56 0.00 3.33 8.33 1.11 0.00 0.00 0.00
Canada 15.56 15.39 14.83 14.67 14.72 14.39 13.94 0.00


Table 4.4: Average and Maximum Concentrations of Ethanol Reported
*10 % ethanol by volume = approximately 3.7 wt % oxygen.
Region Average Concentration of Ethanol based on all volumes of gasoline reported (%vol)* volumes of gasoline reported (% by volume)*
2000 2001 2002 2003 2004 2005 2006 2007
Atlantic 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Quebec 0.04 0.00 0.01 0.19 0.29 0.10 0.03 0.60
Ontario 1.43 1.69 1.81 2.02 1.80 1.98 2.02 0.00
West 0.00 0.00 0.00 0.00 0.00 0.00 0.05 0.09
Canada 0.46 0.60 0.61 0.60 0.67 0.57 0.52 0.42
Region Maximum Concentration of Ethanol based on all volumes of gasoline containing ethanol (% vol)
2000 2001 2002 2003 2004 2005 2006 2007
Atlantic 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Quebec 10.00 10.00 10.00 10.00 10.00 10.00 10.00 25.84
Ontario 10.00 10.00 10.00 9.73 10.00 75.95 71.89 9.19
West 0.57 0.00 10.00 10.00 10.81 10.00 10.54 10.81
Canada 10.00 10.00 10.00 10.00 10.81 75.95 71.89 25.84


Top of Page

4.4 Trends of Aromatics and Olefins

From 1994 to 1998, data on the benzene, aromatic and olefin concentrations in gasoline were collected by Environment Canada under a voluntary survey. Olefin concentrations were added to this survey in 1997. When gasoline is combusted in the vehicle’s engine, aromatics in the gasoline can form benzene (a known human carcinogen), while olefins can form 1,3-butadiene (a probable human carcinogen).

Trends for aromatics and olefins content are shown in tables 4.5 and 4.6, respectively[8]. These data show that 2007 national reported levels of aromatics have slightly decreased since 2006. Similarly, levels of olefins have slightly decreased since 2006 and remain among the lowest reported levels since 1997.

Table 4.5: Average Aromatics Content of Canadian Gasoline 1995-current

Click here for table

Table 4.6: Average Olefins Content of Canadian Gasoline 1997-current

Click here for table

Top of Page

4.5 Comparison of Imported vs. Domestic Gasoline

Table 4.7 compares the data provided by refiners and importers. As was shown in Table 3.1, flat limits were selected by the majority of importers while the YPA option was selected by the majority of refiners. As shown in Table 4.7, importers reported lower maximum values for all parameters except for distillation parameters E200 and E300, and olefins.

Table 4.7: Comparison of Importers and Refiners Reported Maximum and Average Values (for All Reported Parameters in 2007)
Parameter Reported Maxima Calculated Volume Weighted Average
Importers Refiners Importers Refiners
Oxygen (wt %) 3.40 9.56 0.22 0.26
Sulphur (mg/kg) 67 80 17.36 18.19
Vapour Pressure (kPa) 106.0 113.0 63.80 81.61
E200 (vol %) 87.1 74.3 48.27 47.88
E300 (vol %) 98.2 97.0 82.67 84.35
Aromatics (vol %) 45.7 55.0 25.10 27.48
Olefins (vol %) 34.8 31.3 9.18 9.87
Benzene (vol %) 2.97 1.60 0.64 0.71
BEN 91.20 87.20 45.46 48.73


Top of Page

5.0 Other Gasoline Quality Information

5.1 The Gasoline Regulations

The Regulations respecting concentrations of lead and phosphorus in gasoline (The Gasoline Regulations)[9] limit the concentration of lead in gasoline that is produced, imported, sold or offered for sale in Canada to 5 mg/L and limit the concentration of phosphorus in unleaded gasoline to 1.3 mg/L. Gasoline for use in aircraft is exempt from the Regulations and, until January 1, 2010, gasoline for use in competition vehicles is not subject to the lead concentration restrictions.

The Gasoline Regulations were passed in 1990, virtually eliminating the use of lead additives in gasoline. The Regulations were passed in response to the 1986 Royal Society of Canada Commission on Lead in the Environment, which recommended to the Government of Canada that “Public health and environmental policy should be to reduce blood lead to its lowest possible level”. Of particular concern were emissions of lead particles to the atmosphere, of which the largest source was gasoline lead particulates from the combustion of tetraethyl lead and tetramethyl lead, antiknock additives that were commonly used in gasoline.

Under the Gasoline Regulations, producers, importers or sellers of leaded gasoline must submit reports (see Appendix 1) to the Minister of the Environment as follows:

For the 2007 reporting period, nine companies submitted records of imports of leaded gasoline for use in competition vehicles totalling 1,170,424 Litres. Eleven companies submitted records of leaded gasoline sales. The reported average lead concentrations of that gasoline ranged from 0.0001 to 2113.6 mg/L. Table 5.1 summarizes the number of companies reporting imports of leaded gasoline for use in competition vehicles for each region in 2007.

Table 5.1: Number of Companies Reporting Imports of Gasoline for Use in Competition Vehicles (2007)
Region Number of Companies
Atlantic 0
Quebec 1
Ontario 2
West/North 6
National 9


Top of Page

Appendix 1:

Annual Compliance Package with Sample Reporting Forms for the Benzene in Gasoline Regulations;& Gasoline Regulations

Current package available at:
http://www.ec.gc.ca/energie-energy/default.asp?lang=En&n=48F8FEEC-1

Benzene in Gasoline Regulations

NOTE: Information contained in this page is for compliance promotional purposes and has NO legal status. For requirements under the regulations, refer to the actual regulations.

These regulations apply to importers, manufacturers and blenders of gasoline. They also apply to anyone that sells gasoline or offers it for sale.

The regulations prohibit the production or import of gasoline with a benzene content exceeding 1.0% by volume. They also restrict the Benzene Emissions Number (BEN), a calculated parameter that relates gasoline composition to predicted emissions of benzene from vehicle tailpipes to a maximum of 71 in the summer and 92 in the winter. Companies may elect to meet annual pooled averages for benzene and BEN, in place of the above limits.

The regulations also prohibit the sale of gasoline with more than 1.5% by volume of benzene.

Various reporting and record-keeping requirements are specified in different sections of the Regulations. For instance:

REGISTRATION FORM

FOR A MANUFACTURER, BLENDER OR IMPORTER OF GASOLINE (Sch.2)

BENZENE IN GASOLINE REGULATIONS (s.7)

Please mail to the appropriate regional office (please refer to the “Headquarter & Regional Offices” list at section “Contacts List” of the CD for the appropriate address).

This form is provided for your convenience. Please refer to the Benzene in Gasoline Regulations for information on requirements.

1. Company Name: _______________________________________________________________

Company Address: _______________________________________________________________

Type of primary supplier (check one or more): [ ] Manufacturer [ ] Blender [ ] Importer

2. Name and location of each refinery and typical annual volume, in m3, of each type of gasoline manufactured at each refinery:

_____________________________________________________________

_____________________________________________________________

_____________________________________________________________

3. Name and location of each blending facility, typical blending material(s) and typical annual volume, in m3, of each type of gasoline blended at each facility: (For cargo tankers, railway cars, boats, marine vessels or other mobile blending facilities, indicate only the type and number of mobile facilities and the province of operation.)

_____________________________________________________________

_____________________________________________________________

_____________________________________________________________

4. Each usual point and mode of importation and typical annual volume, in m3, of each type of gasoline imported:

_____________________________________________________________

_____________________________________________________________

5. Authorized official: _____________ Telephone no.(___) ___-________

Title: _______________________ Fax no.(___) _____-___________

Signature: ________________________ Date: ____________________

Top of Page

REPORT ON COMPOSITION OF GASOLINE (Sch.3)

BENZENE IN GASOLINE REGULATIONS (s.8)

This report should be:

a) submitted by every primary supplier as defined in the Regulations;

b) submitted on or before February 15 of each year (annual reporting);

c) mailed to the appropriate regional office of Environment Canada (please refer to the “Headquarter & Regional Offices” list at section “Contacts List” of the CD for the appropriate address).

This form is provided for your convenience. Please refer to the Benzene in Gasoline Regulations for information on requirements.

Registration Number: _______________________________________ Year: ____________

Company name: ______________________________________________________________

Company address: ___________________________________________________________

Type of primary supplier (check one or more): [ ] Manufacturer [ ] Blender [ ] Importer

Has a yearly pool average been elected for this year? [ ] Yes [ ] No

If yes, for which parameters? [ ] Benzene [ ] Benzene Emissions Number (BEN)

If yes, has your compliance plan been updated during the reporting period?

[ ] Yes [ ] No

Note: Updated compliance plans must be submitted to the Minister pursuant to subsection 21(3) of the Benzene in Gasoline Regulations.

Name and location of the refinery, blending facility or points of importation in the province, covered by this report:
(Refer to Notes A) and B) on the next page)

_____________________________________________________________

_____________________________________________________________

_____________________________________________________________

Composition of gasoline supplied during this reporting period.

Volume of gasoline supplied, in m3: _________________________________________

Number of batches supplied: _________________________________________________

Name of any oxygenates added: _______________________________________________

  Column 1 Column 2 Column 3
Item Parameter Maximum Value Year-to-date volume-weighted average value
1. Oxygen Concentration (% by weight)
2. SulphurConcentration (mg/kg)
3. Vapor pressure at 37.8°C (100°F)(kPa)
4. Evaporative fraction at 93.3°C (200°F) (% by volume)
5. Evaporative fraction at 148.9°C (300°F) (% by volume)
6. Aromatics concentration (% by volume)
7. Olefins concentration (% by volume)
8. Benzene concentration (% by volume)
9. Benzene Emissions Number (Refer to note C)

Authorized Official (*): _________________________

Title: _________________________

Signature: _________________________

Telephone No. (___) _____-___________

Fax No. (___) _____-___________

Date: _________________________

(*) Refer to note (F) on next page

NOTES – BENZENE IN GASOLINE REGULATIONS

  1. This Report on Composition of Gasoline must be submitted separately for each refinery, blending facility and province of importation, or any combination of them described under section 18 of the Benzene in Gasoline Regulations.
  2. For Note A, the name and location for cargo tankers, railway cars, boats, marine vessels or other mobile blending facilities are replaced by the type of mobile facilities, their number and the province of operation, or the name and location of the non-mobile facility with which they are grouped.
  3. The average benzene emissions number is the volume-weighted average of the benzene emissions numbers for each batch; it is not calculated from the average model parameters.
  4. Under subsection 13(2) of the Benzene in Gasoline Regulations, for each batch of gasoline-like blendstock dispatched or imported by the primary supplier during the period covered by this Report, the primary supplier must report to the Minister, in an annex to this Report, the name and address of the purchaser or receiver, the date of dispatch or importation and the volume.
  5. Under subsection 2(2) of Schedule 1 to the Benzene in Gasoline Regulations, the primary supplier must report to the Minister, in an annex to this Report, each occurrence of a model parameter that is outside the acceptable range, the reason for each occurrence, and the volume of gasoline affected.
  6. Authorized official is a defined term (refer to subsection 1(1) of the Benzene in Gasoline Regulations).

Additional Requirements for Importers as per Section 12 of the Benzene in Gasoline Regulations

NOTE: Information contained in this page is for compliance promotional purposes and has no legal status. For requirements under the regulations, refer to the actual regulations.

Subsection 12(1) Every importer must notify the Minister, at least 12 hours before the time of importation, of the importer’s intention to import:

  1. at any one time more than 100 m3 of gasoline identified under subsection 9(1) or (2) as complying gasoline, US reformulated gasoline, California gasoline or northern winter complying gasoline; or;
  2. at any one time, any amount of gasoline identified under subsection 9(1) as gasoline-like blendstock; or
  3. into a province and within any one day, more than 1,000 m3 of gasoline identified under subsection 9(1) or (2) as complying gasoline, U.S. reformulated gasoline, California gasoline or northern winter complying gasoline (amended 2003)

Subsection 12(2) The notice required by subsection (1) must include:

  1. the name and registration number of the importer;
  2. the type of gasoline identified under subsection 9(1), unless it is complying gasoline;
  3. the volume of the gasoline that is scheduled to be imported;
  4. the point of entry of the gasoline into Canada and the estimated date and time* that it will enter Canada;
  5. the address of the first storage facility or refueling facility to which the gasoline is to be delivered and the estimated date and time of its delivery there; and
  6. the name and telephone number of a representative of the importer through whom sampling arrangements can be made.

* Provide the best estimated date and time with your notice; revise when more accurate date and time become available.

Subsection 12(3) No importer shall import gasoline by cargo tanker, railway car, boat, marine vessel or aircraft unless the gasoline is accompanied at the point of entry into Canada and at the point of delivery, and everywhere between those points, by a record that shows:

  1. the name, address and registration number of the importer;
  2. the name and address of the person to whom the gasoline is to be sold or ownership transferred;
  3. the address of the first storage facility or refueling facility to which the gasoline is to be delivered;
  4. the volume of the gasoline; and
  5. the type of gasoline identified under subsection 9(1), unless it is complying gasoline.

Top of Page

12-HOUR NOTIFICATION OF IMPORTS

BENZENE IN GASOLINE REGULATIONS (s.12)

This additional requirement under section 12 of these regulations is addressed to importers intending to import at any one time more than 100 m3 of gasoline or more than 1000 m3 into a province in one day. Note no minimum for gasoline-like blendstock.

This notification should be sent via fax at least 12 hours before the time of importation to the appropriate regional office of Environment Canada (please refer to the “Headquarter & Regional Offices” list at section “Contacts List” of the CD for the appropriate fax number).

This form is provided for your convenience. Please refer to the Benzene in Gasoline Regulations for information on requirements.

a) Importer Name: ________________________________

Importer Registration Number: _____________________________

Batch Number (Optional): _______________________________________

b) Type of gasoline identified under Section 9, check or mark “x” below:

Complying gasoline [ ] California gasoline [ ]Gasoline-like blendstock [ ] Northern winter complying gasoline [ ] US reformulated gasoline [ ]

c) Scheduled volume of gasoline (m3):

d) Point of entry into Canada: _______________________________________________________________

Estimated date ______________ and time of entry _________________

e) Address of first storage facility or refueling facility to whom gasoline is to be delivered:

_____________________________________________________________

Estimated date of delivery _________ and time of delivery ______________

f) Importer’s representative through whom sampling may be arranged:

Name (Print): ____________ Telephone: ____________________

Following To Be Completed by Environment Canada (PLEASE PRINT):

Environment Canada Official receiving or reviewing information:

Name: ________________________ Signature: ____________________________

Date: ________________________ Telephone: (______) ______ -- ____________

Gasoline Regulations

NOTE: Information contained in this page is for compliance promotional purposes and has no legal status. For requirements under the regulations, refer to the actual regulations.

NOTE: The current exemption for gasoline used in competition vehicles is valid until January 1, 2010.

These Regulations limit the lead and phosphorus content in gasoline that is produced, imported or sold in Canada to 5 mg/L and 1.3 mg/L, respectively. Gasoline for use in aircraft is exempted. Until January 1, 2010 these regulations do not apply to gasoline for use in competition vehicles, as defined by the regulations, except for the record and reporting requirements of section 11.

Leaded Gasoline used in Competition Vehicles reporting

For leaded gasoline used in competition vehicles, annual detailed reports indicating, among other things, quantities imported, produced and distributed, as well as the lead concentrations, must be submitted to the Minister of the Environment by March 31 of the year following the year in which the activity occurred. Records detailing these activities must be kept in Canada for a period of five years after the date the record is made. Example templates in paper form for company identification and record keeping (for leaded gasoline import, production, sales, re-sales and distribution information) are attached for your convenience. Electronic versions of the templates (in Excel) are also available.

Top of Page

Leaded Gasoline For Competition Vehicles

Annual Reporting for Gasoline Regulations

Canadian Environmental Protection Act, 1999

Company Identification and Declaration

Company Information

Contact Information

Company Name: _________________

Name: _________________________

_______________________________

Title: ______________________________

Address: _____________________________

Address: _____________________________

City: _________________________
Prov.: ________________________

City: _________________________
Prov.: ________________________

Postal Code: ____________

Postal Code: ____________

Ph: (_____) ______-________

Ph: (_____) ______-________

Fax: (_____) ______-________

Fax: (_____) ______-________



(to be completed if contact address differs from company address)

Calendar year: ____

Non Involvement

[ ] In the above indicated calendar year, I did not produce, import, distribute, re-sell, sell or offer for sale leaded gasoline for use in competition vehicles.  In this case, please complete this form and return it to the address listed below.

Involvement

[ ] In the above indicated calendar year, I produced, imported, distributed, re-sold, sold or offered for sale leaded gasoline for use in competition vehicles. The reports for these activities are attached.

Confidential

[ ] Pursuant to subsection 313(1) of the Canadian Environmental Protection Act, 1999, I request that the following information for the above calendar year be treated as confidential (please specify your reasons).

Not Confidential

[ ] I do not request the following information be treated as confidential and I consent to it being released without restriction.

Signature _____________________________

Name (please print) ____________________

Title _________________________________

Place and date _________________________

Please complete this form, including your records, and send it to the appropriate regional office (please refer to the “Headquarter & Regional Offices” list at section “Contacts List” of the CD for the appropriate address).

Leaded Gasoline For Competition Vehicles
Record Keeping for Gasoline Regulations
Canadian Environmental Protection Act, 1999
Leaded Gasoline Import/Production Information
Date Brand Name Octane Rating / Analysis Method1 Average Lead Concentration (mg/L) Quantity Imported (Litres) Quantity Produced (Litres)
1. Please indicate for Octane Rating and Analysis Method: R - Research Octane Number; M - Motor Octane Number; or, A - Anti-Knock Index

























Top of Page

Appendix 2: Alternative Limits under the Benzene in Gasoline Regulations

Canada Gazette Part I, Vol. 133, No. 36
September 4, 1999

GOVERNMENT NOTICES

DEPARTMENT OF THE ENVIRONMENT

Alternative Limits under the Benzene in Gasoline Regulations

This notice provides information on alternative limits that have been approved by the Minister of the Environment under the federal Benzene in Gasoline Regulations.

The federal Benzene in Gasoline Regulations set limits for the level of benzene in gasoline and for a parameter called the benzene emissions number (BEN). The BEN relates gasoline composition to the estimated emissions of benzene from vehicles. The limits under the Regulations came into effect on July 1, 1999.

Under subsection 17(2) of the Benzene in Gasoline Regulations, primary suppliers of gasoline (refiners, blenders and importers) could elect to be subject to alternative limits for the BEN, based on their historical gasoline composition. Under subsection 16(2), primary suppliers unable to meet the July 1, 1999, implementation date could also apply to be subject to temporary (higher) limits for both benzene and the BEN for up to six months.

Temporary Limits under Subsection 16(2)

Under subsection 16(2) of the Regulations, primary suppliers may apply for temporary alternative limits for benzene and the BEN if, for reasons beyond their control, they cannot meet the implementation date of July 1, 1999. Primary suppliers may only use the temporary limits until December 31, 1999. Under subsection 16(4) of the Regulations, the Minister of the Environment approves these applications only if:

In the Regulatory Impact Analysis Statement that accompanied amendments to the Benzene in Gasoline Regulations, published in the Canada Gazette, Part II, on May 26, 1999, the Minister of the Environment announced her intention to "publish a notice in Canada Gazette Part I identifying the company, its alternative limits, and the period that the limits apply". Pursuant to that intention, the following tables show the temporary alternative limits for benzene and the BEN that have been applied for and approved. It should be noted that under the Regulations, companies can elect to meet the requirements on the basis of yearly pool average limits with associated never-to-be-exceeded caps, rather than meeting "flat" never-to-be-exceeded limits.

Temporary Limits for Primary Suppliers having Elected to use Yearly Pool Averages
Company Refinery or province of importation Temporary yearly pool average limits (all expire on Dec. 31, 1999) Temporary never-to-be-exceeded caps Expiry date for temporary never-to-be-exceeded caps
  Benzene (% vol.) BEN Benzene (% vol.) BEN
Petro-Canada Montréal refinery 1.28%
76.4
4.61%
156.8/198.1
November 15, 1999
Shell Montréal refinery 2.0%
86.8

4.7%

117.8/220.0

November 15, 1999

Ultramar Québec refinery and Montréal terminal 1.2%
3.55%
—/134.8
November 15, 1999
Pétroles Norcan Imports into Quebec 1.54%
66.68
3.0%
November 15, 1999
Petro-Canada Oakville refinery 1.75%
80.4
4.29%
140.6/—
September 15, 1999
Standard limits under subsections 16(1) and 17(1)
Standard limits Benzene BEN 0.95%
59.5
1.5%
102/132


Top of Page

Temporary Limits for Primary Suppliers Subject to "Flat" Limits
Company Refinery or province of importation Temporary flat (per-litre) limit Expiry date for temporary flat limit
  Benzene (% vol.) BEN
Olco/Neste Imports into Quebec and Ontario 3.0% November 15, 1999
Spur/Murphy Imports into Ontario 2.06% September 15, 1999
Parkland Bowden refinery 1.5% December 31, 1999

Standard limits under subsection 3(1) and section 4

Standard limits 1.0% 71/92

Notes:

Under paragraph 3(2)(b) of the Regulations, the areas where gasoline sold is subject to temporary alternative limits are:

In the above areas, the prohibition on selling (as opposed to manufacturing, blending or importing) gasoline containing benzene at a concentration that exceeds 1.5 percent by volume is deferred from October 1, 1999, to April 1, 2000.

Alternative Limits for BEN under Subsection 17(2)

Under subsection 17(2) of the Regulations, primary suppliers may elect for alternative limits for the BEN based on the historical composition of their gasoline. There is no expiry date for alternative BEN limits.

In the Regulatory Impact Analysis Statement that accompanied the Benzene in Gasoline Regulations, published in the Canada Gazette, Part II, on November 26, 1997, the Minister of the Environment announced her intention that the alternative limits "will be publicly available and will be published by Environment Canada". Pursuant to that intention, the following alternative limits for the BEN have been applied for and approved:

Alternative Limits for BEN
  Benzene Emissions Number
Company Refinery Alternative yearly pool average limit Alternative never-to-be-exceeded cap (summer/winter)
* This contact information was included in this Canadian Gazette Part I notice (September 1999). For the most current contact information please refer to the contributing authors of this report.
Petro-Canada Montréal 67.9 115.0/151.0
Shell Montréal 65.3 110.5/144.7
Petro-Canada Oakville 65.3 117.1/141.4
Shell Sarnia 65.0 106.0/147.8
Standard limits under subsection 17(1)
Standard limits 59.5 102/132


Top of Page

Appendix 3: Regional and National Data for all Parameters

Table A3.1: Averages (Total, Maximum and Minimum) and Maximum Values of Reported Gasoline Parameters (2007)

Click here for table

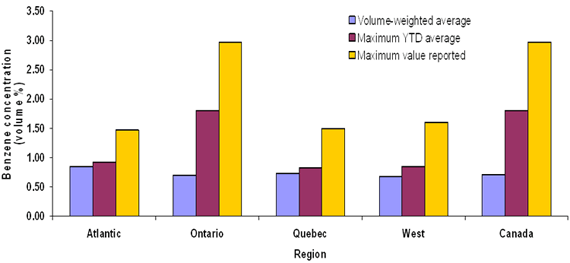

Figure A3.1: Average, Maximum Average and Maximum Value for Benzene Concentration in Canadian Gasoline (2007)
Figure A3.1: Average, Maximum Average and Maximum Value for Benzene Concentration in Canadian Gasoline (2007)

Click here to see the picture in full-size

Figure A3.2: Average, Maximum Average and Maximum Value for BEN of Canadian Gasoline (2007)
Figure A3.2: Average, Maximum Average and Maximum Value for BEN of Canadian Gasoline (2007)

Click here to see the picture in full-size

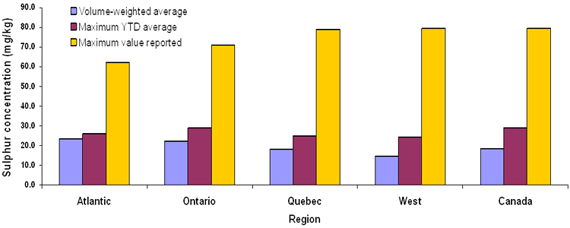

Figure A3.3: Average, Maximum Average and Maximum Value for Sulphur Concentration of Canadian Gasoline (2007)
Figure A3.3: Average, Maximum Average and Maximum Value for Sulphur Concentration of Canadian Gasoline (2007)

Click here to see the picture in full-size

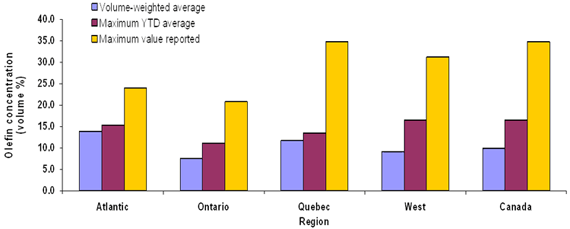

Figure A3.4: Average, Maximum Average and Maximum Value for Olefin Concentration of Canadian Gasoline (2007)
Figure A3.4: Average, Maximum Average and Maximum Value of Olefin Concentration of Canadian Gasoline (2007)

Click here to see the picture in full-size

Figure A3.5: Average, Maximum Average and Maximum Value for Aromatics Concentration of Canadian Gasoline (2007)
Figure A3.5: Average, Maximum Average and Maximum Value for Aromatics Concentration of Canadaian Gasoline (2007)

Click here to see the picture in full-size

Figure A3.6: Average, Maximum Average and Maximum Value for Vapour Pressure of Canadian Gasoline (2007)
Figure A3.6: Average, Maximum Average and Maximum Value for Vapour Pressure of Canadian Gasoline (2007)

Click here to see the picture in full-size

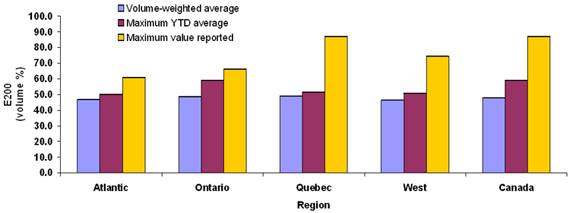

Figure A3.7: Average, Maximum Average and Maximum Value for Average E200 of Canadian Gasoline (2007)
Figure A3.7: Average, Maximum Average and Maximum Value for Average E200 of Canadian Gasoline (2007)

Click here to see the picture in full-size

Figure A3.8: Average, Maximum Average and Maximum Value for Average E300 of Canadian Gasoline (2007)
Figure A3.8: Average, Maximum Average and Maximum Value for Average E300 of Canadian Gasoline (2007)

Click here to see the picture in full-size

Figure A3.9: Average, Maximum Average and Maximum Concentration of Canadian Gasoline (2007)
Figure A3.9: Average, Maximum Average and Maximum Value for Average Oxygen concentration of Canadian Gasoline (2007)

Click here to see the picture in full-size

Top of Page

Appendix 4: Company Reported Data

Table A4.1a: Averages and Maximas Reported for Gasoline Parameters (2007)

Click here for table

Table A4.1b: Averages and Maximas Reported for Gasoline Parameters (2007)

Click here for table


[1] SOR/97-493, as amended by SOR/99-204, SOR/2000-102, SOR/2003-318 and SOR/2004-252; a copy of the regulations can be found at www.ec.gc.ca/CEPARegistry/regulations

[2] BEN - The Benzene Emission Number relates gasoline composition to the estimated emissions of benzene from vehicles. It is a number calculated using various gasoline parameters and relates gasoline composition to emissions of benzene from a “typical” 1990 vehicle. (see Schedule 1 of the Regulations)

[3] The definition of “blend” in the regulations excludes the mixing of complying gasoline or the adding of only additives, commercially-pure butane or oxygenate to complying gasoline.

[4] see Registration Form for a Manufacturer, Blender or Importer of Gasoline in Appendix 1

[5] Prior to 2002, the quarterly volume-weighted average values were required.

[6] Text was included in cover letter accompanying 2007 Schedule 3 reporting form for Benzene in Gasoline Regulations from GM Canada Ltd.

[7] The data for 1995 to 1998 were collected from primary suppliers under a voluntary survey of benzene, aromatics and olefins in gasoline. All refiners and a number of importers participated in the survey. Annual reports on the survey were published by Environment Canada.

[8] The data for 1995 to 1998 were collected from primary suppliers under a voluntary survey of benzene, aromatics and olefins in gasoline. All refiners and a number of importers participated in the survey. Annual reports on the survey were published by Environment Canada.

[9] SOR/90-247, as amended by SOR/92-587, SOR/94-355, SOR/97-147, SOR/98-217, SOR/2000-104, and SOR/2003-106; a copy of the regulations can be found at http://www.ec.gc.ca/CEPARegistry/regulations
